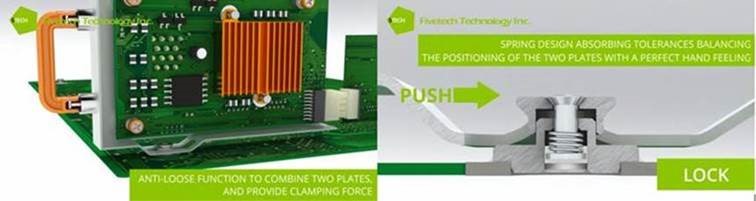

SMT Spring Lock provides a faster assembly solution for the server motherboard. The module can be fixed on the PCB with a single fastener – SMT Spring Lock, which can be locked on the PCB in just one second. The anti-loose function combines two plates and provides clamping force, saves time in installation, facilitates disassembly, and absorbs tolerances perfectly so that the board and the thermal module can achieve balanced positioning.

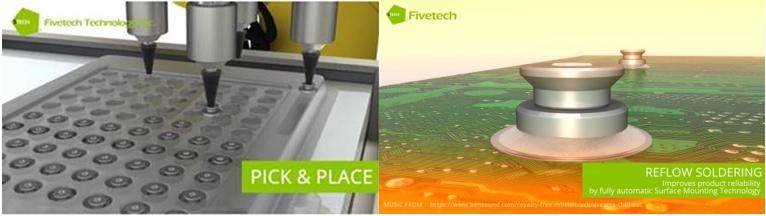

By using fully automatic Surface Mount Technology, SMT Spring Lock would be sucked by a vacuum nozzle above and placed on the corresponding tin solder. This fully automated production not only reduces labor costs but also improves production efficiency and provides stable reliability.
With the application of the lock rail, Spring Lock will be installed on both sides of the chassis, which can avoid excessive force and achieve the staged pulling function. Besides, this series is customization available by size and thickness according to the requirements of the rail. There are a variety of standard sizes to choose from as well, achieving easy installation and meeting the needs of quick installation and disassembly.
Fivetech provides a complete set of mechanical designs, our creative quick-release series can bring unexpected time-saving and effort-saving effects to your design, and also optimize your work efficiency. Welcome to share your ideas and discuss with us!
Five Advantages of Fivetech SMT Spring Lock:
-Built-in automatic return mechanism, provides clamping force, achieves anti-loose function
-Spring design absorbs tolerances and positions two boards, offering a perfect hand feeling
-SMT soldering process improves product reliability
-Automatic production improves stability and production efficiency
-Wide range of applications and the specs can be customized
